Glass Cutting Equipment

1.Model:HSL-CNC3829
2.Max glass size:3660*2800mm
3.Glass cutting thickness:2-19mm
4.Dimension:4860*3835mm
5.Optimization software:Optima
6.Function: automatic pressure control,automatic edge finding,air flotation system, 360 degree remote control walking
7.Certificate:CE, ISO9001
Product Description

What is Glass Cutting Equipment

Glass cutting equipment is a necessary piece of machinery for processing different kinds of glass. Whether for decorative glass, smart mirrors, automobiles, or architecture, it is made to produce accurate cuts with great efficiency. These devices' cutting-edge technology guarantees accuracy and stability, which are essential for fulfilling safety regulations and industry-specific standards.

glass cutting machine

Why Choose Huashil Machine for Glass Cutting Equipment

A reliable glass cutting equipment manufacturer and supplier of  cutting equipment, Huashil Machine is well-known for its:

  • An experienced R&D team and creative designs
  • Dependable production from a factory
  • A skilled after-sales staff with more than a decade of exporting
  • Full certifications guaranteeing safety and quality standards
  • Strong after-sales services, prompt delivery, high cost-efficiency, and OEM support

glass cutting machine

Technical Specifications

Specification Details
Cutting Precision ±0.2 mm
Max Glass Thickness Up to 19 mm
Cutting Speed Adjustable up to 200 m/min
Power Consumption 6 kW

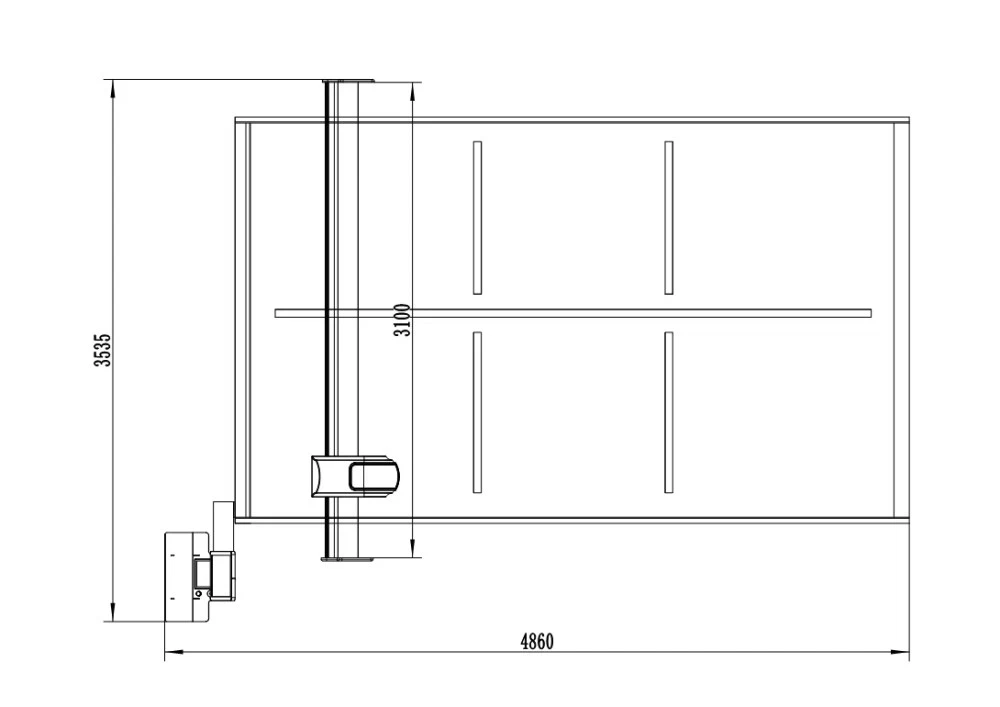

Machine Dimensions 4860 mm x 3835 mm x 1600 mm
Weight Approx. 1500 kg

Glass Cutting Equipment Highlights

  • High Precision: Sophisticated controls guarantee that each cut satisfies precise requirements.
  • Stable Performance: Sturdy construction for continuous, long-term use.
  • Customizable Options: Perfect for intricate projects, it supports a wide range of glass shapes and sizes.
  • User-friendly: Lower expenses and downtime are achieved through easy operation and maintenance.

glass cutting machine

How It Works

Pressure and precisely guided tools are used in the operation of Glass cutting equipment. Users can enter desired dimensions using automated settings, and the machine determines the best course for each cut. In addition to reducing waste, this system guarantees that glass pieces are consistently cut to the proper sizes and shapes.

Applications

  • Architectural glass: Offers accurate cuts for windows, doors, and curtain walls, making it ideal for large-scale construction projects.
  • Automotive Glass: Ideal for producing high-precision automotive glass that satisfies quality requirements.
  • Cutting unusual shapes to fit creative mirror designs is possible with smart mirror glass.
  • Decorative Glass: Ideal for furniture and decorative applications, flexible cutting options enable a variety of shapes and designs.

Glass Cutting Equipment

FAQ

1. What is the warranty for your cutting equipment?
We offer a one-year warranty on all components, with extended service options.

2. Do you provide installation support?
Yes, our team provides installation guidance, and we offer on-site support for large orders.

3. What are the maintenance requirements?
The machine requires minimal maintenance. Basic cleaning and periodic inspection of cutting components are recommended.
