3826 Glass Cutting Machine

1.Model:HSL-YTJ3826(LOW-E REMOVAL)
2.Max glass size:3660*2440*mm

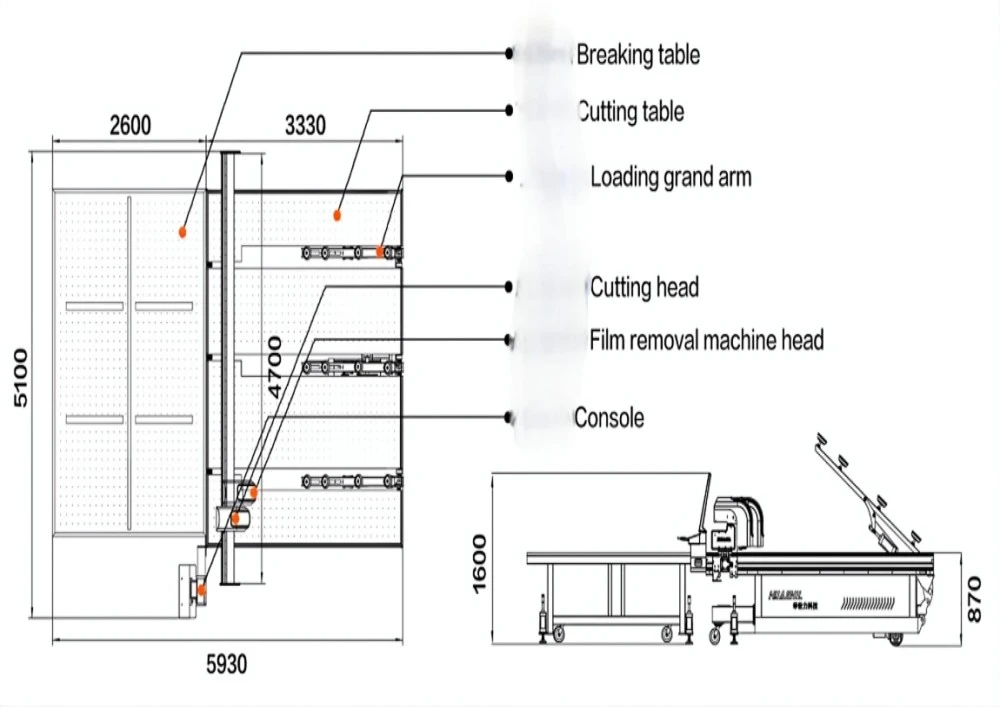

3.Glass cutting thickness:2-19mm
4.Dimension:5930*5100mm
5.Optimization software:Optima
6.Function: automatic loading,automatic pressure control,automatic edge finding,air flotation system, with breaking table,360 degree remote control walking,low-e film removal
7.Certificate:CE, ISO9001 8.Glass conveying by synchronous belts
Product Description



Shandong Huashil Technology: Your Trusted 3826 Glass Cutting Machine Manufacturer & Supplier

As a leading China manufacturer and supplier, Shandong Huashil Technology specializes in the 3826 Glass Cutting Machine, a state-of-the-art solution for glass processing. With over a decade of experience, we offer customized, low-price machines that meet global standards. Our 3826 Glass Cutting Machine stands out for its high precision, automation capabilities, and energy efficiency, making it the ideal choice for industries like construction, automotive, and solar.


What is the 3826 Glass Cutting Machine

A specialized piece of machinery, the 3826 Glass Cutting Machine is made to cut glass with remarkable efficiency and accuracy. This machine allows manufacturers to achieve precise cuts that meet strict industry standards, making it ideal for industries like architectural, automotive, smart mirror, and decorative glass. For companies that require reliable, superior glass processing, its cutting accuracy and cutting technology boost productivity.

glass cutting machine

Why Choose Huashil Machine

Professional 3826 Glass Cutting Machine manufacturer and supplier Huashil Machine is renowned for its creative R&D team, original factory operations, and extensive after-sales support. Quality and client satisfaction are our top priorities, and we have over ten years of exporting experience and certifications in place. Businesses in need of dependable glass cutting solutions can trust Huashil Machine because we provide OEM options, quick delivery, competitive pricing, and a strong after-sales network.

Technical Specifications

Specification Details
Cutting Precision ±0.2 mm
Glass Thickness Range 3–19mm
Maximum Cutting Speed 200 m/min
Power Supply 380V, 50Hz
Operation Mode Automated and manual options
Machine Dimensions 59300 mm x 5100 mm x 1600 mm

glass cutting machine

Key Highlights of the 3826 Glass Cutting Machine

  • High precision cutting guarantees flawless edges and little waste of material.
  • Control and Automation: Both automated and manual operation modes are available.
  • Durability: Designed to endure heavy use with minimal upkeep.
  • User-friendly Interface: Increases production efficiency by streamlining operations.
  • OEM and Customizable Options: it is designed to satisfy particular industry demands.

glass cutting machine

How It Works

It precisely cuts glass sheets of different sizes and shapes using cutting-edge automation technology. Easy-to-use controls enable operators to customize each job's specifications, enabling the machine to effectively handle intricate cuts. With the help of preprogrammed parameters, the cutting head moves precisely, guaranteeing uniformity throughout production runs.

Applications

1. Cutting Precision & Automation

Ultra-High Accuracy: Achieves straight-line precision ≤±0.1mm/m and profile cutting ≤±0.15mm/m , meeting automotive-grade safety standards (e.g., PVB/EVA film cutting for windshields) .

Smart Automation: Equipped with photoelectric positioning, automatic edge-finding, and 360° rotary cutter head for complex shapes (arcs, polygons) .

Servo-Driven Stability: YASKAWA servo motors and Taiwan YinTai linear guides ensure smooth motion control during 24/7 operations .

2. Multi-Industry Adaptability

A. Construction & Architectural Glass

Demand: High-volume cutting for curtain walls (max size 3660×2440mm) with Italian OPTIMA/GUIYOU optimization software integration .

Case Study: Nippon Sheet Glass uses 3826 for ultra-clear glass processing, leveraging aged-treated frames to withstand continuous 16-hour shifts .

B. Automotive Glass

Critical Features:

SMC proportional solenoid valves auto-adjust pressure (3+X+3mm to 8+X+8mm thickness) .

Anti-static felt prevents micro-cracks in laminated glass edges .

Client Example: Saint-Gobain utilizes German Bole blades and full-servo control for zero-edge chipping .

C. Solar & Appliance Glass

Speed & Efficiency: 150m/min cutting speed with 8kW energy consumption, compatible with ERP/MES systems for production tracking .

Application: Haier integrates 3826 for refrigerator panel cutting, achieving 98% material utilization via AI path optimization .

D. Decorative & Furniture Glass

Software Flexibility: Supports Type3/ArtCAM CAD designs and hybrid manual-auto modes for custom orders .

Compact Design: Integrated labeling/peeling modules reduce floor space by 30% for SMEs .

3826 Glass Cutting Machine

FAQ

Q1: What industries is the 3826 Glass Cutting Machine suitable for?
A: It’s ideal for construction, automotive, solar, furniture, and appliance industries.

Q2: Can the machine handle complex shapes?
A: Yes, it supports arcs, polygons, and other custom shapes.

Q3: Is the machine energy-efficient?
A: Absolutely, with a power consumption of just 12KW.

Q4: Do you offer customization?
A: Yes, we provide customized solutions to meet your specific requirements.

glass cutting machine

Contact Us

Please contact our team at Huashil Machine salescathy@sdhuashil.com for more information or to talk about how the 3826 Glass Cutting Machine can meet your production needs. Our professionals are available to assist you in determining the best course of action for your glass cutting needs.

3826 Glass Cutting Machine
